Removal and Installation
8-64
HP DesignJet 5000 and 5500 Series Printers Service Manual
Ink Supply Station (ISS)
Removal
WARNING Switch off the Printer and remove the Power Cord.
1. Remove the Left Hand Cover - Refer
to Page 8-6.
2. Remove the Left Rear Cover - Refer
to Page 8-15.
3. Remove the Back Extension Cover
(Only for the 60" Model) - Refer to
Page 8-17.

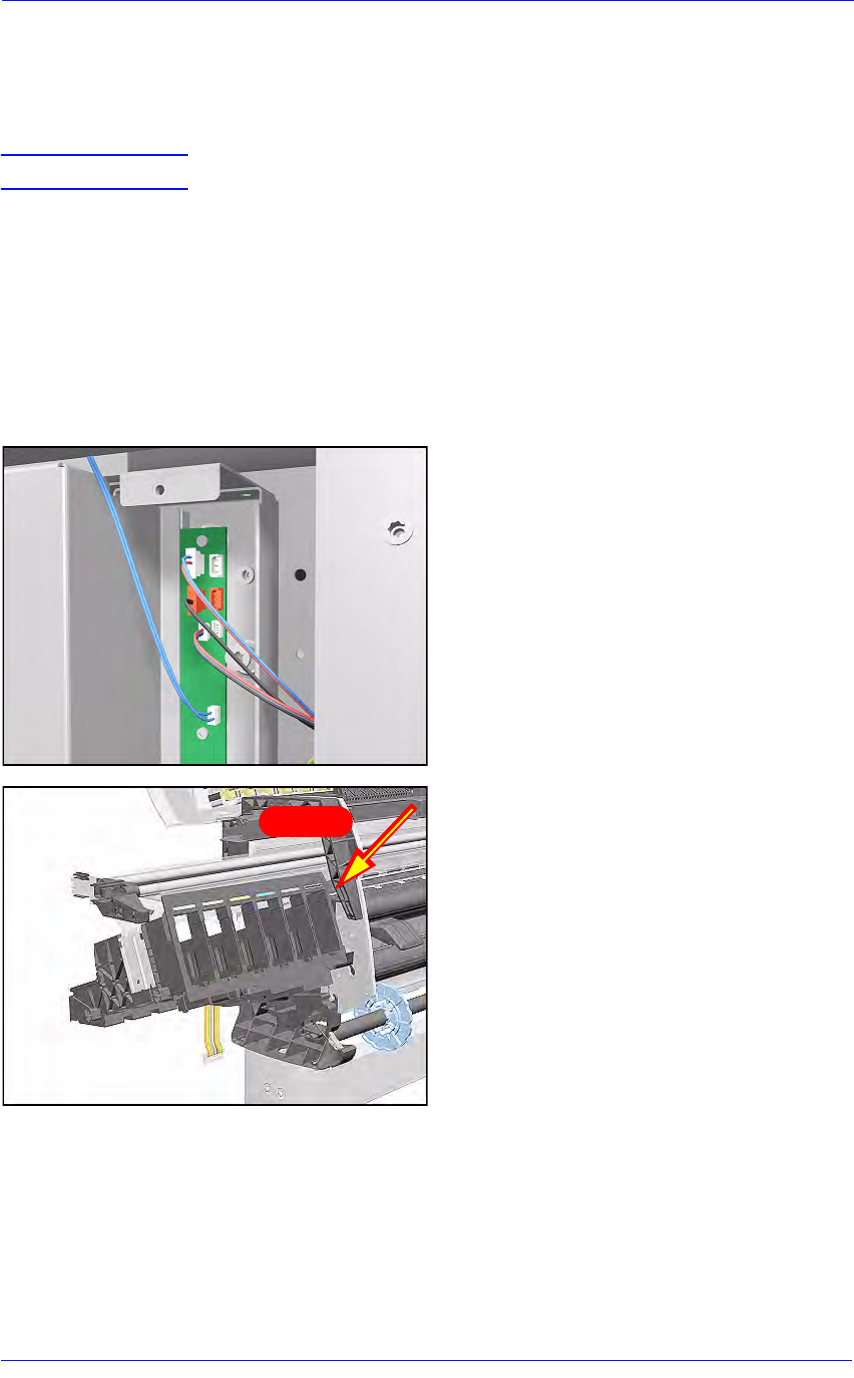

4. Disconnect APS Cables (P5, P4 and
P3) from the ISS PCA.
5. To remove the ISS, stand at the end of
the Printer and press in the retaining
clip on the ISS.
P5
P4
P3
Press here
