Removal and Installation
8-117
HP DesignJet 5000 and 5500 Series Printers Service Manual
Center Platen Assembly
Removal
WARNING Switch off the Printer and remove the Power Cord.
NOTE Refer to the table on Page 8-4 for information on screw types.

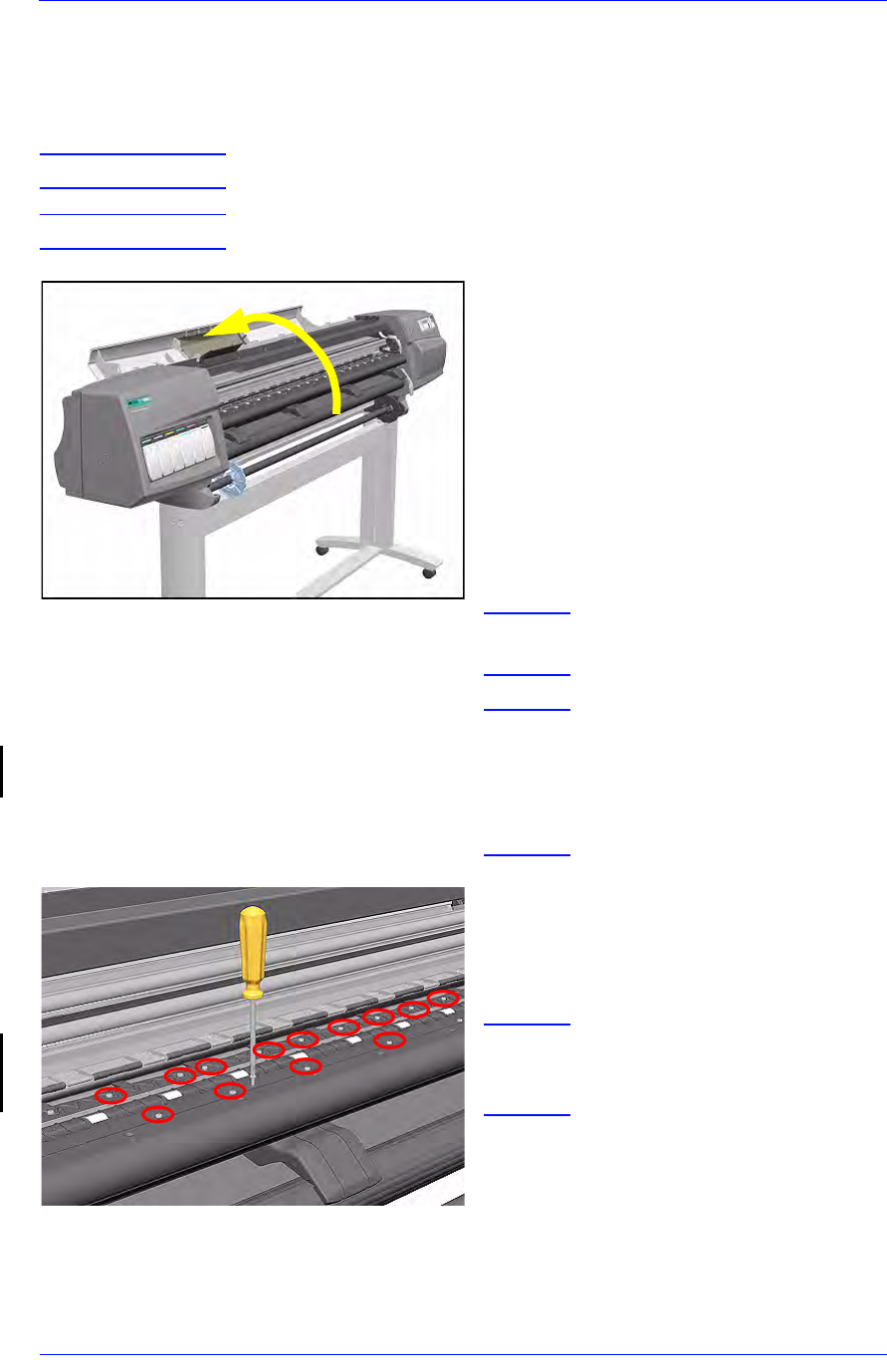

1. Open the Top Cover.
NOTE Make sure the Carriage is
not in the print Platen area.
NOTE Make sure the Media Lever
is in the UP position (to raise
the pinch-wheels) before
removing the Platen
Assembly.
2. Remove the following screws (Type
R) from the Center Platen Assembly:
39 T-10 screws in the 60" Model.
35 T-10 screws in the 42" Model.
NOTE Be very careful when
removing the screws because
they can easily get damaged.
