Removal and Installation
8-22
HP DesignJet 5000 and 5500 Series Printers Service Manual
Left Hand Trim
Removal
WARNING Switch off the Printer and remove the Power Cord.
NOTE Refer to the table on Page 8-4 for information on screw types.

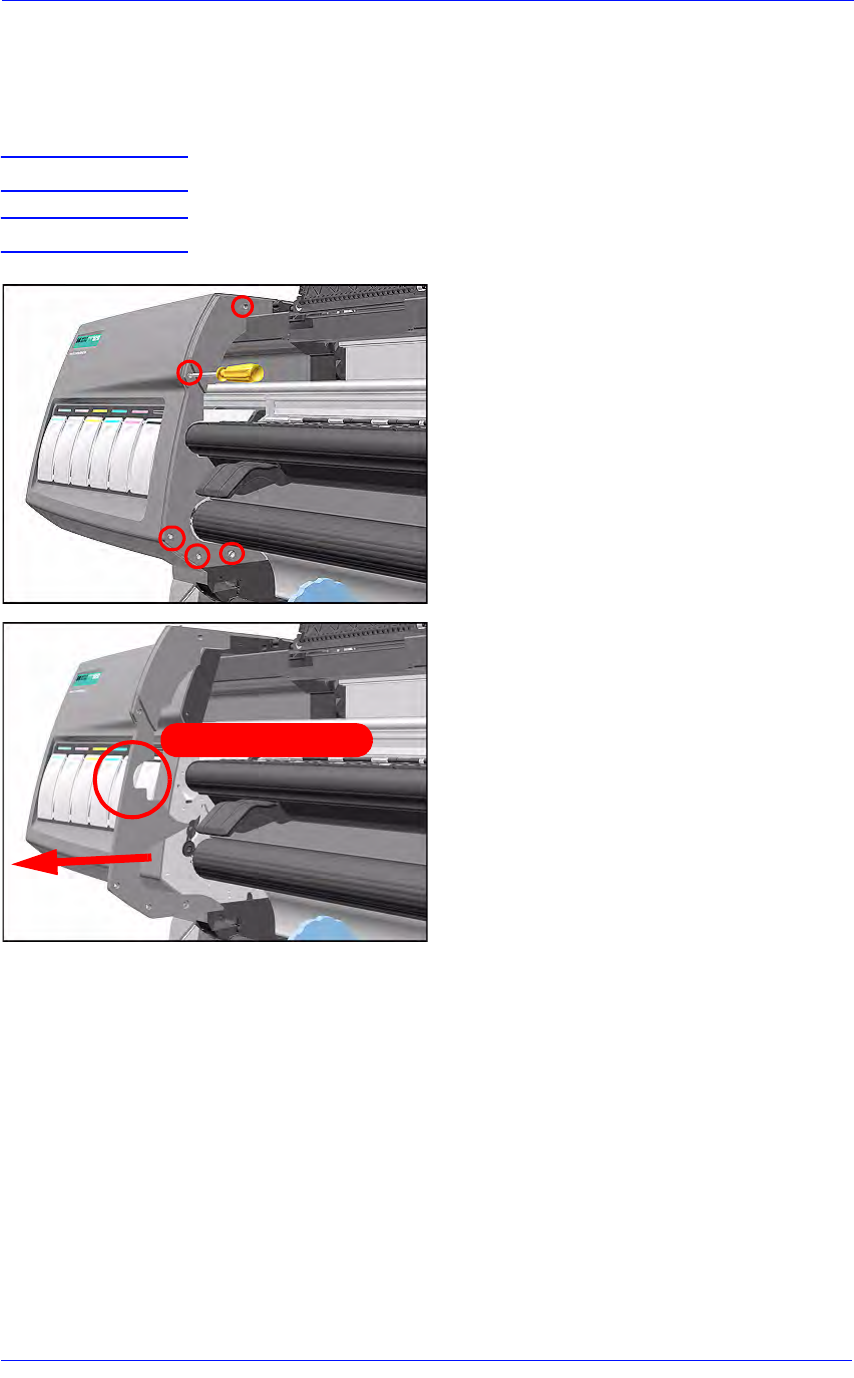

1. Remove 4 T-15 screws (Type F) and 1
T-20 screw (Type L) from the Left
Hand Trim.
2. Carefully remove the Left Hand Trim.
Remove carefully
