The PCL Print Model
Introduction
The Print Model feature allows images and characters to be
filled with any of the printer’s predefined shading or cross-hatch
patterns, or with a user-defined pattern. Images include any
raster graphic, such as one created with PCL raster graphics
commands (as described in Chapter 15,
Raster Graphics
); a
rectangular fill area (as described in Chapter 14,
PCL
Rectangular Area Fill Graphics
); or a character or characters
selected from any font.
Print model operation defines a
pattern,
source image,
and
destination image
. These images are applied to each other
using the print model’s transparent and opaque modes to
produce a resulting image that is a combination of the others.
The print model features, listed below, are illustrated in Figure
13-1 and Figure 13-2, and described on the following pages.
z
Pattern
z
Source Image
z
Destination Image
z
Source Transparency Mode
z
Pattern Transparency Mode

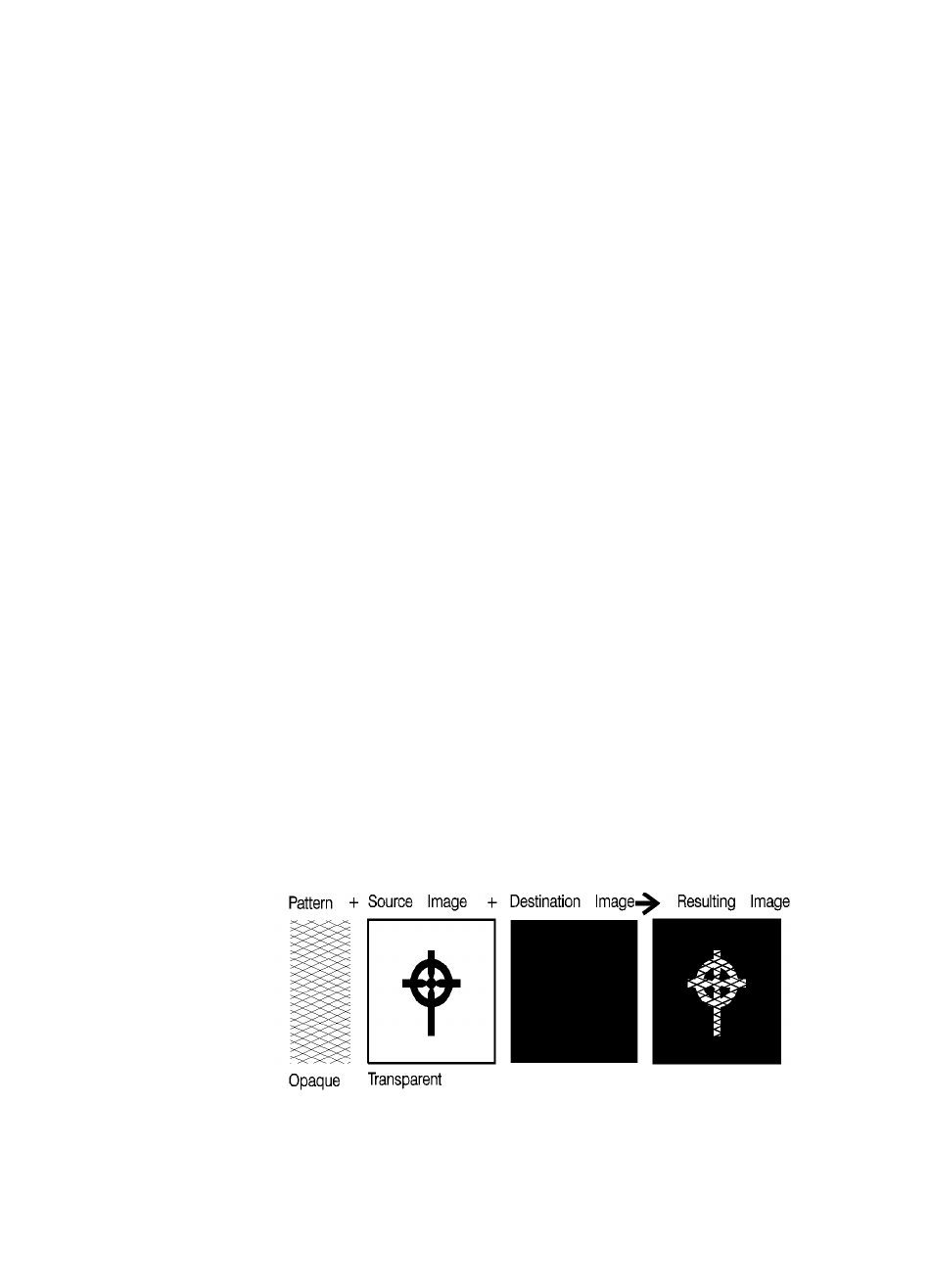

Figure 13-1 Print Model Imaging
