Tray 1 (multipurpose tray) separation pad
CAUTION: Do not touch the surface of the pad. Skin oils deposited on the roller might cause paper-
handling problems.
1. Press the cartridge-door release button, and then open the cartridge door. Make sure that the door
is completely open.

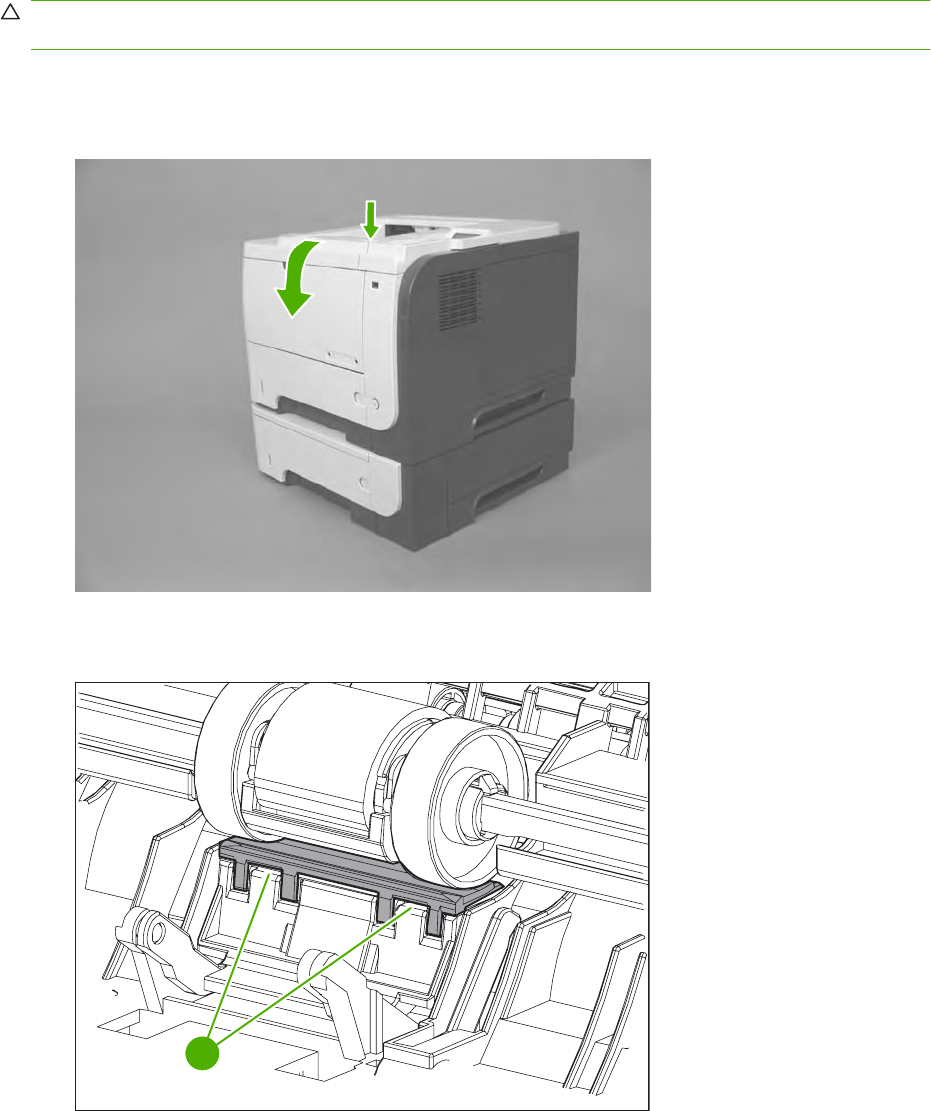

Figure 2-62 Remove the Tray 1 (multipurpose tray) separation pad (1 of 2)
2. Release two tabs (callout 1), and then remove the separation pad.
Figure 2-63 Remove the Tray 1 (multipurpose tray) separation pad (2 of 2)
