M Tray 2 detect switch
Tray 2 cassette presence switch (SW235)
1. Remove the Tray 2 cassette, and then install it to activate the sensor.

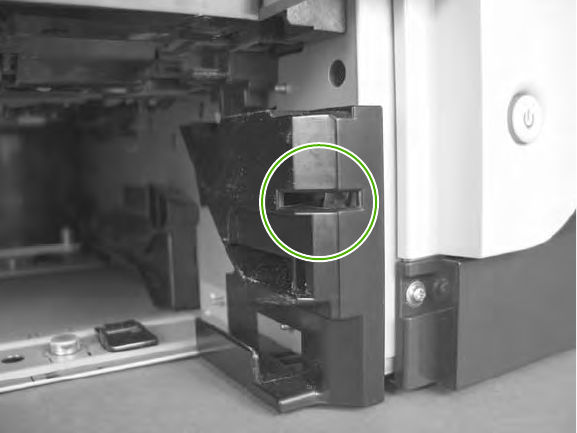

Figure 3-16 Test the Tray 2 cassette presence switch
2. Check the control-panel display for sensor response.
3. If there is no response, make sure that the sensor-actuator tab on the cassette is not damaged or
missing.
If necessary, replace the switch.
152 Chapter 3 Solve problems ENWW
