Duplex media-feed assembly
Duplex models only.
1. Before proceeding, remove the following components:
Rear-door assembly. See
Rear-door assembly on page 62.
Right-rear cover. See
Right-rear cover on page 68.
2. Release two tabs (callout 1) on the duplex media-feed guide, and then slide the guide toward the
back of the product to remove it.
Reinstallation tip Make sure that both tabs snap back into place when reinstalling the duplex
media-feed guide.

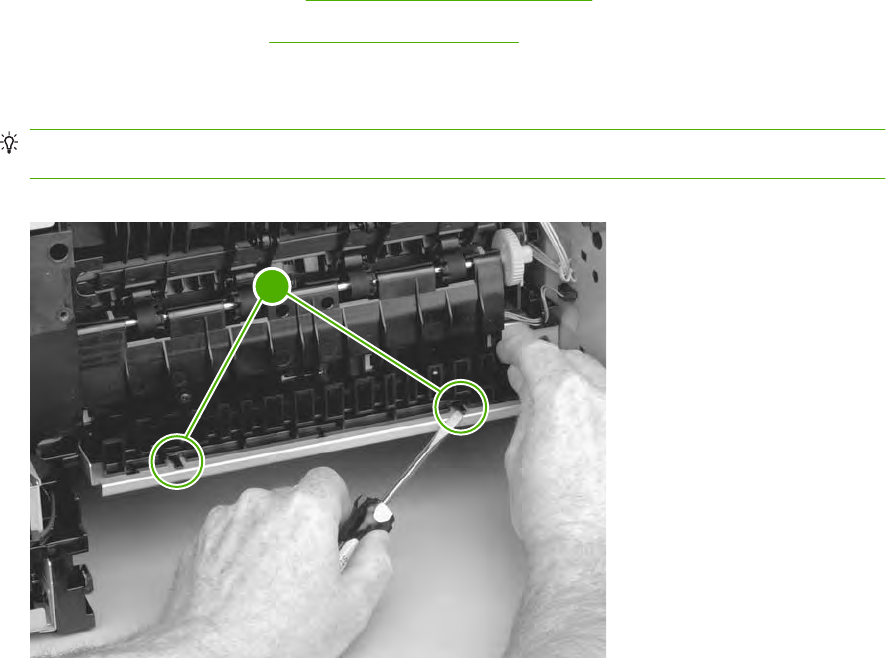

Figure 2-88 Remove the duplex media-feed assembly (1 of 5)
1
