Power-switch assembly
WARNING! ESD sensitive component.
1. Before proceeding, remove the following components:
DIMM cover. See
DIMM cover and DIMM on page 57.
Formatter cover. See
Formatter cover and formatter PCA on page 60.
Top-right cover. See
Top-right cover on page 73.
Control panel. See
Control panel on page 74.
Front-right and right-side cover assembly. See
Front-right and right-side cover assembly
on page 76.

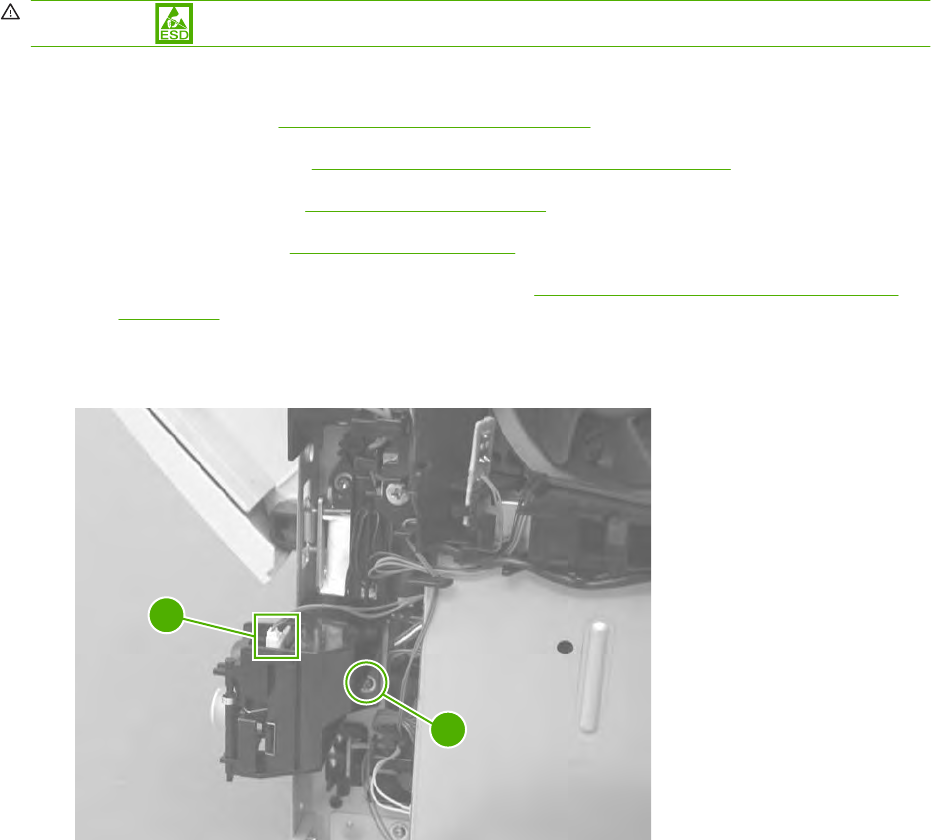

2. Disconnect one connector (callout 1), and then remove one screw (callout 2).
Figure 2-76 Remove the power-switch assembly (1 of 2)
1
2
96 Chapter 2 Removal and replacement ENWW
