Tray 2, Tray 3, or Tray 4 base-plate roller assembly
1. Remove the tray cassette. See Tray cassette (Tray 2, Tray 3, or Tray 4) on page 54.
2. Locate the base roller assembly (callout 1), release one tab (callout 2), and then slide the assembly
toward the outside of the product to release it.

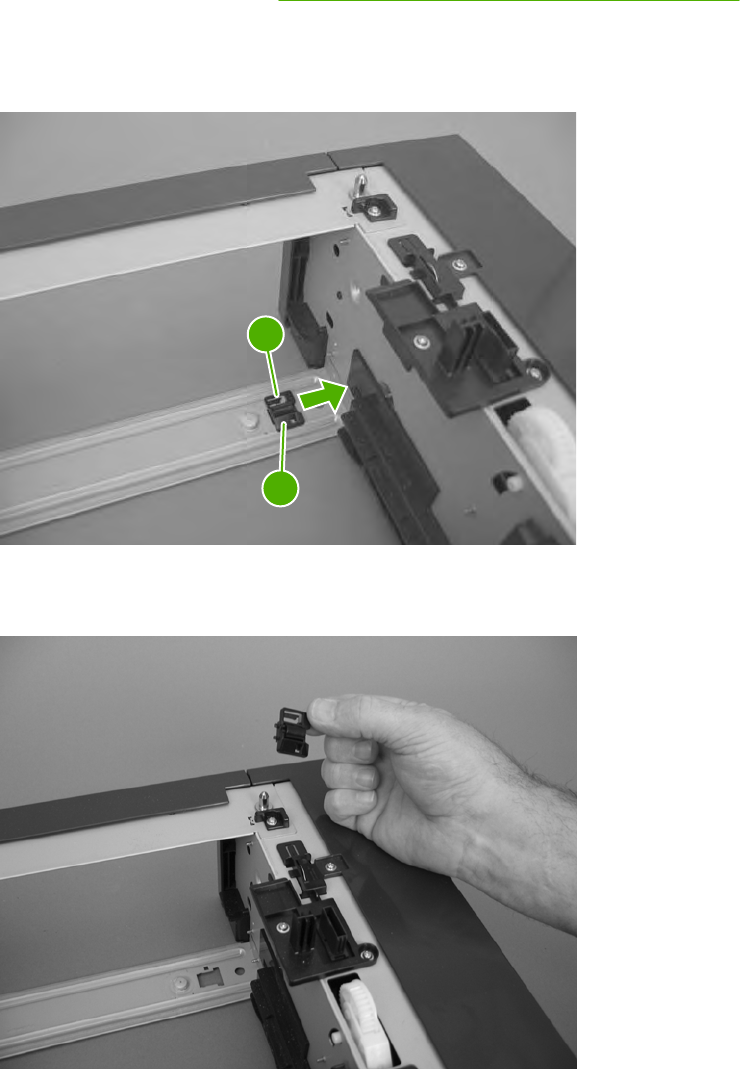

Figure 2-68 Tray 2, Tray 3, or Tray 4 base plate roller assembly (1 of 2)
2
1
3. Remove the base roller assembly.
Figure 2-69 Tray 2, Tray 3, or Tray 4 base plate roller assembly (2 of 2)
ENWW Removal and replacement procedures 91
