3. Remove one screw (callout 1), and then remove the base plate (callout 2).

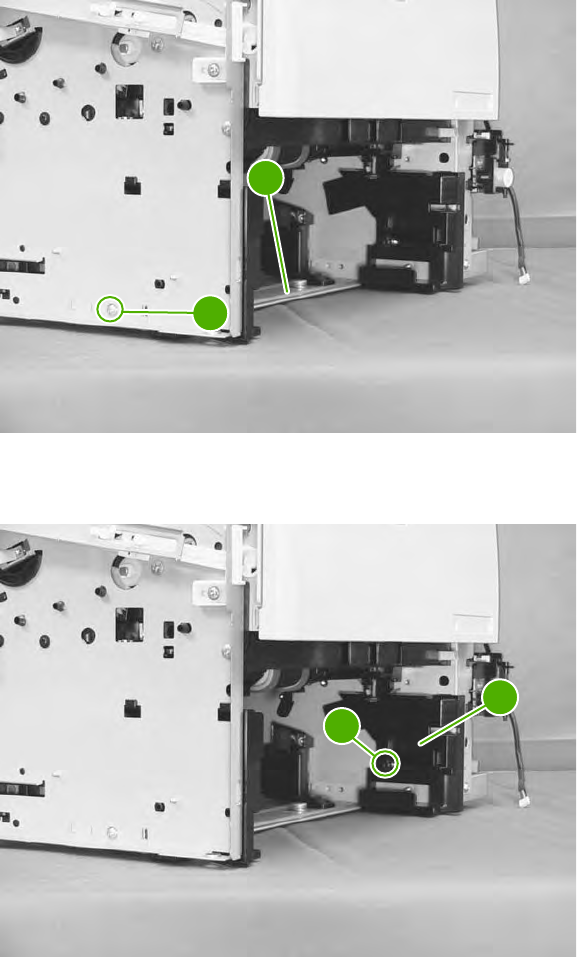

Figure 2-117 Remove the high-voltage power supply (2 of 11)
2
1
4. Remove one screw (callout 1), and then remove the right-side guide (callout 2).
Figure 2-118 Remove the high-voltage power supply (3 of 11)
1
2
122 Chapter 2 Removal and replacement ENWW
