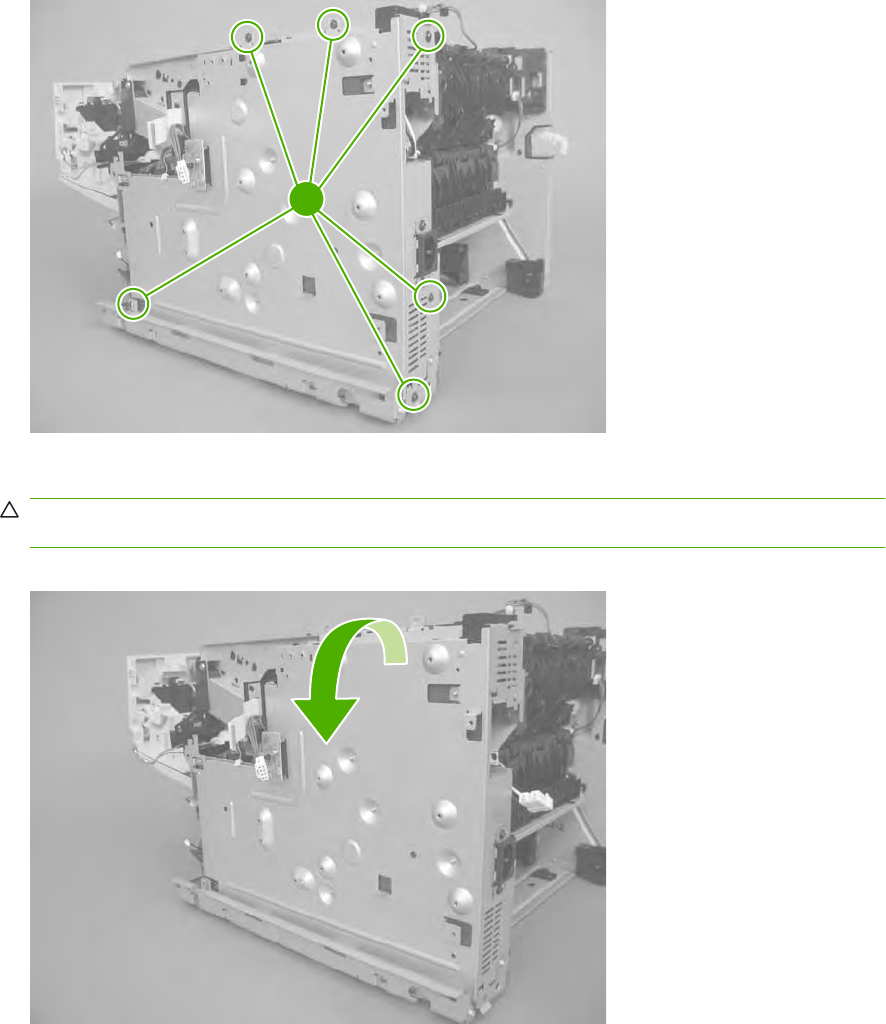

7. Remove six screws (callout 1).
Figure 2-103 Remove the ECU (6 of 9)
1
8. Slight lift the ECU up, and then rotate the top of the ECU pan away from the product.
CAUTION: The ECU is still attached to the product by a FFC. Do not try to completely remove
the ECU.
Figure 2-104 Remove the ECU (7 of 9)
ENWW Removal and replacement procedures 113
