Cassette pickup (Tray 2) solenoid or Tray 1 (multipurpose tray) pickup solenoid
1. Before proceeding, remove the following components:
●
DIMM cover. See
DIMM cover and DIMM on page 57.
●
Formatter cover and formatter PCA. See
Formatter cover and formatter PCA on page 60.
●
Rear-door assembly. See
Rear-door assembly on page 62.
●
Left cover. See
Left cover on page 66.
●
Top-right cover. See
Top-right cover on page 73.
●
Control panel. See
Control panel on page 74.
●
Front-right and right-side cover assembly. See
Front-right and right-side cover assembly
on page 76.
●
Lower-right cover. See
Lower-right cover and bracket on page 80.
●
Top cover. See
Top cover on page 84.
●
Power switch assembly. See
Power-switch assembly on page 96.
TIP: Removing the power-switch assembly makes it easier to disconnect the connectors at
the front of the ECU.
●
Engine control unit (ECU). See
Engine control unit (ECU) on page 110.
2. Release the wire harness from the guides (callout 1), and then remove three screws (callout 2).
CAUTION: Do not try to remove the gear cover after the screws are removed (it is still attached
to the solenoid-wire harness).

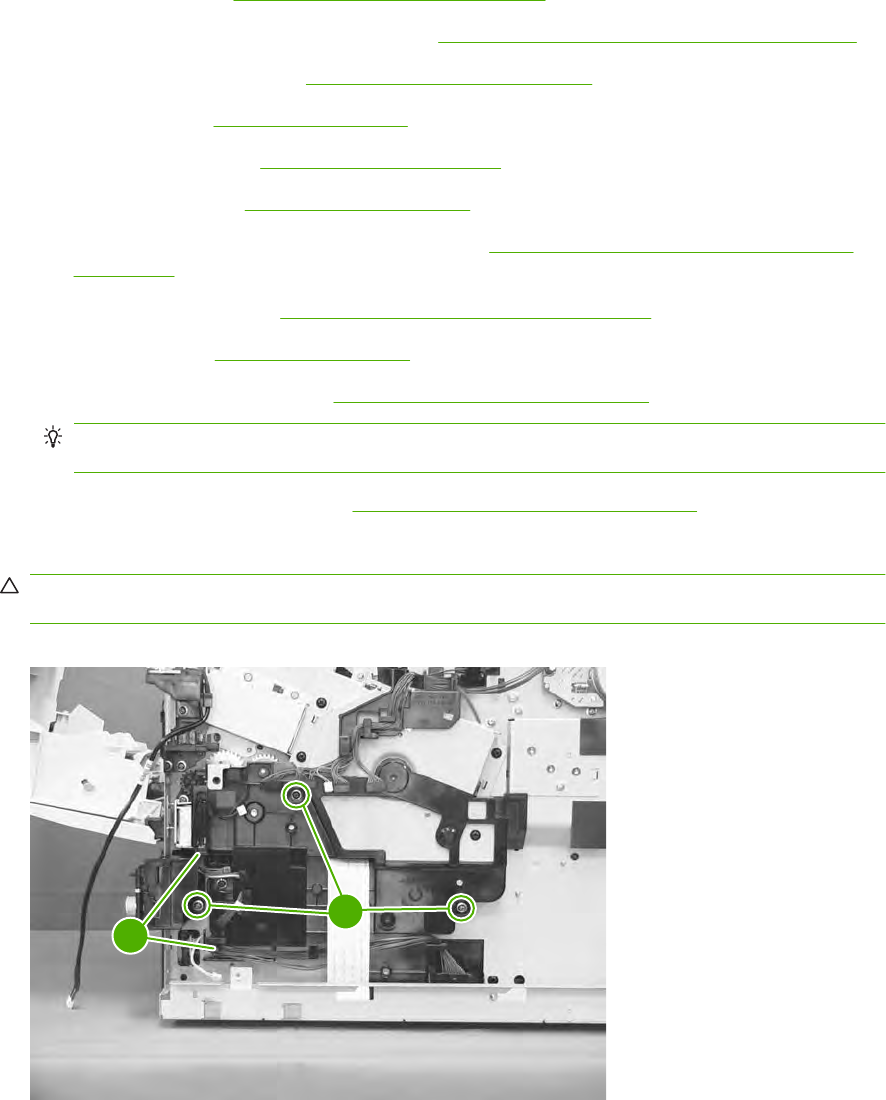

Figure 2-107 Cassette pickup (Tray 2) or Tray 1 (multipurpose tray) solenoid (1 of 3)
1
2
