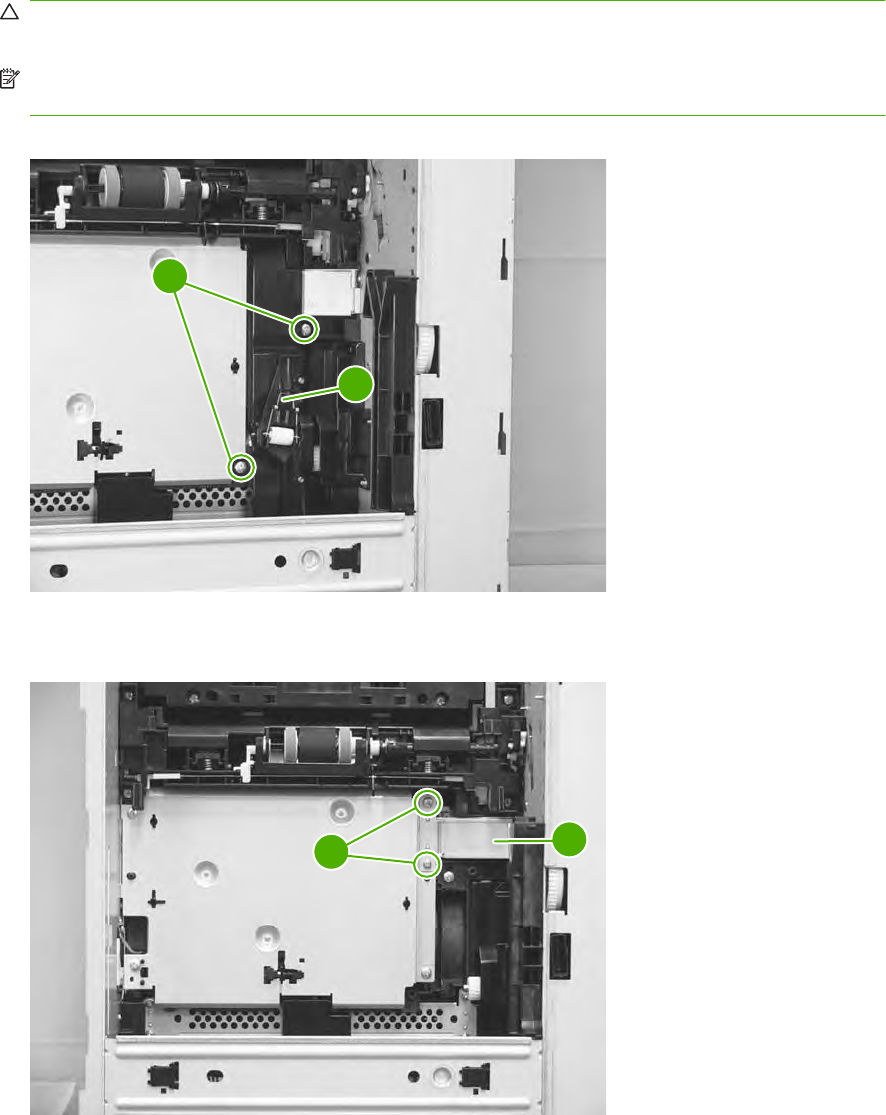

9. Place the product face-side up. Remove two screws (callout 1), and then remove the positioning
guide (callout 2).
CAUTION: When you place the product face-side up, do not damage the rear-door link arm on
the left side of the product.
NOTE: The positioning guide might appear to still be fastened to the product. You might have to
use slight force to separate it form the product.
Figure 2-123 Remove the high-voltage power supply (8 of 11)
1
2
10. Remove two screws (callout 1), and then remove the plate (callout 2).
Figure 2-124 Remove the high-voltage power supply (9 of 11)
2
1
ENWW Removal and replacement procedures 125
