J Rear cover open sensor
Test the face-up detect sensor (PS8001)
1. Open the rear door, and then gently pull down on the door and lower the door until it is fully open
to activate the sensor.
NOTE: Figure 3-13 Test the face-up detect sensor (2 of 2) on page 149 shows the location of
the face-up detect sensor (PS8001) behind the left cover.

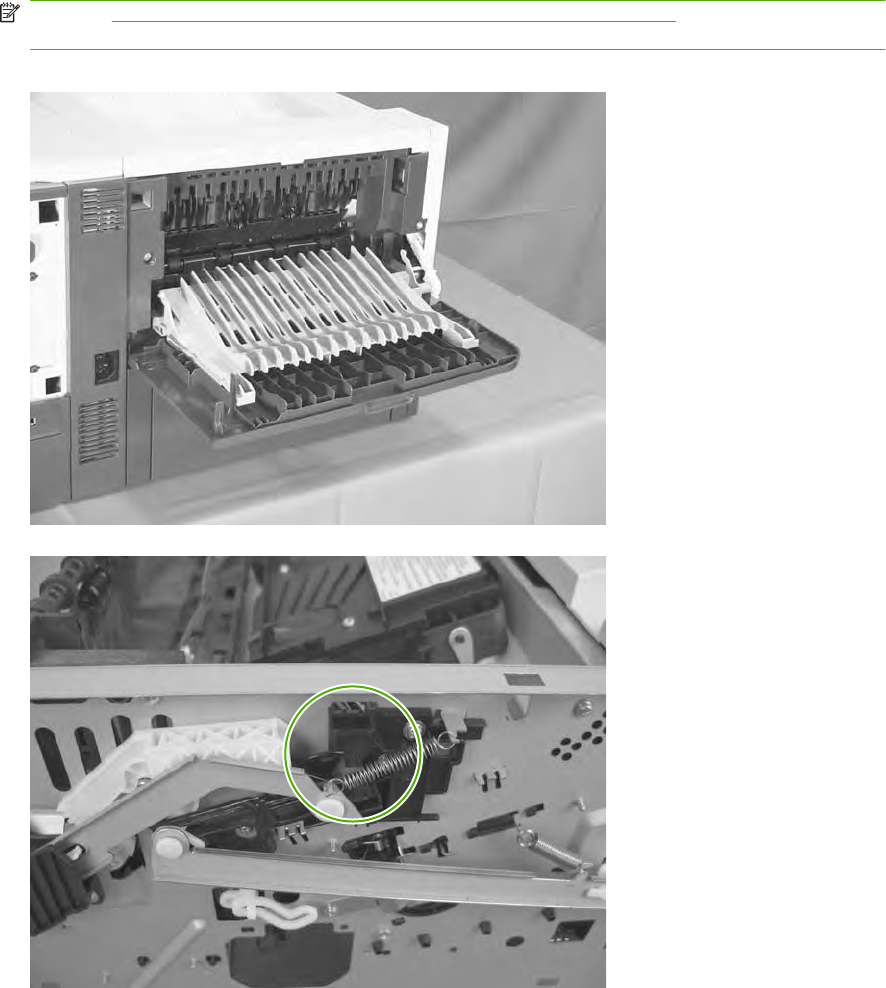

Figure 3-12 Test the face-up detect sensor (1 of 2)
Figure 3-13 Test the face-up detect sensor (2 of 2)
2. Check the control-panel display for sensor response.
3. If there is no response, make sure that the sensor-actuator tab on the door is not damaged or
missing.
If necessary, replace the face-up detect sensor.
ENWW Tools for troubleshooting 149
