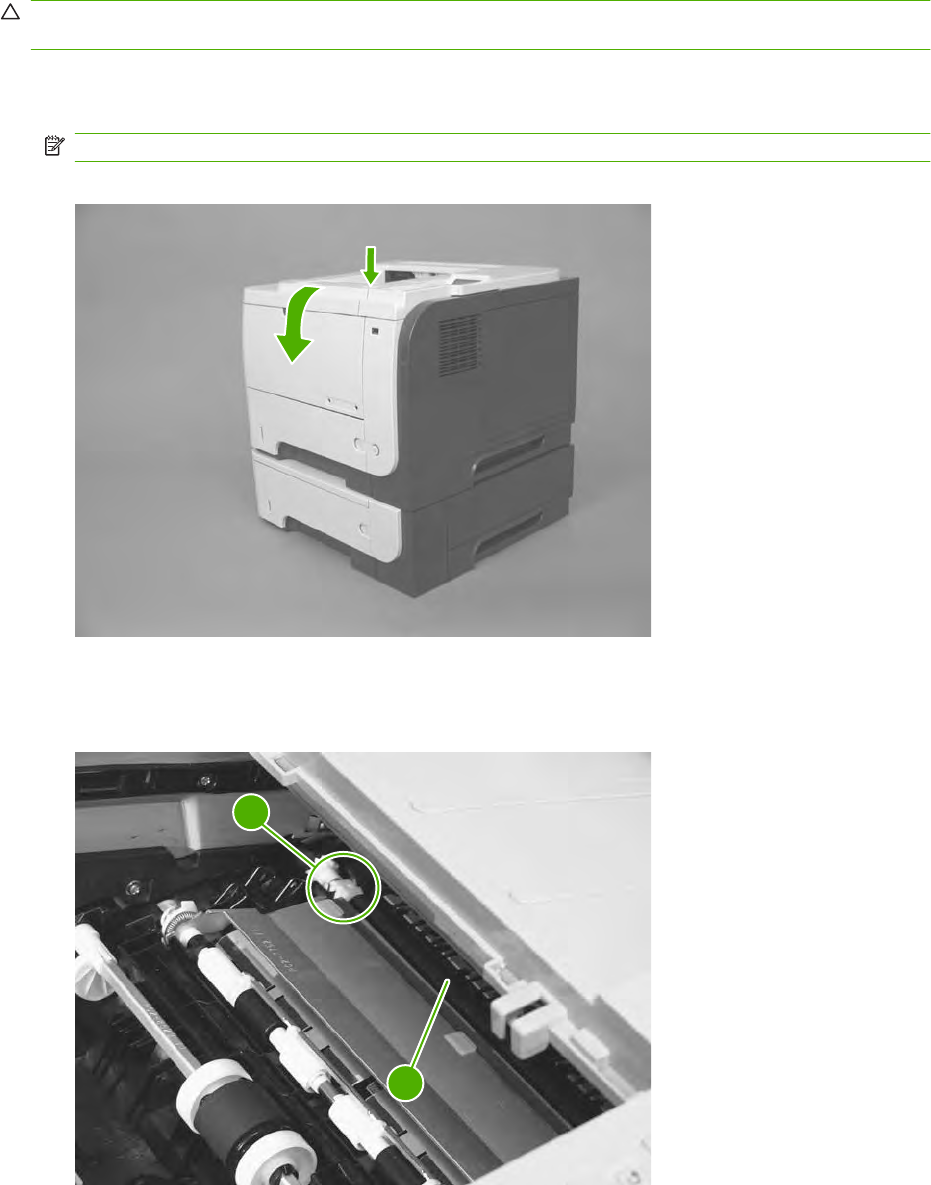

Transfer roller
CAUTION: Do not touch the black-sponge portion of the transfer roller. Skin oils deposited on the
transfer roller might cause print-quality problems.
1. Press the cartridge-door release button, and then open the cartridge door. Make sure that the door
is completely open.
NOTE: If you did not remove the print cartridge before servicing the product, remove it now.
Figure 2-70 Remove the transfer roller (1 of 3)
2. Release two tabs (callout 1) at the left end of the roller, slightly lift the end of the roller up, and then
slide the roller (callout 2) toward the left to release it. Remove the roller.
Figure 2-71 Remove the transfer roller (2 of 3)
1
2
92 Chapter 2 Removal and replacement ENWW
