G FD tray full sensor
Test the face-down media tray media-full (PS1)
1. Raise and then lower the output-bin levers to activate the sensor.

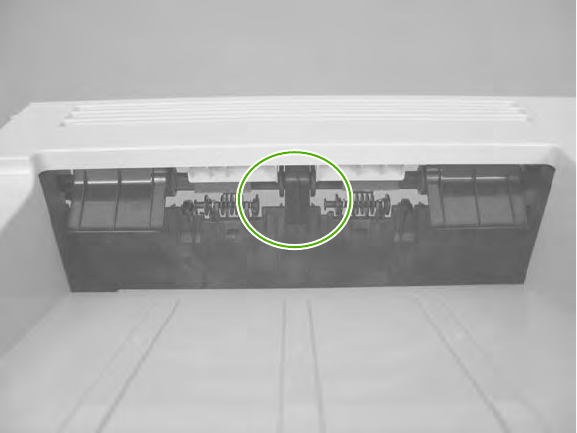

Figure 3-9 Test the face-down media tray media-full sensor
2. Check the control-panel display for sensor response.
3. If there is no response, replace the top-cover flag or the photo interrupter.
