C Duplex sensor
Test the duplex media-feed sensor (PS502)
1. Remove the Tray 2 cassette.
2. Press the green lever to release the duplex media-feed assembly (metal tray).
3. Raise the duplex media-feed assembly until it snaps into place.

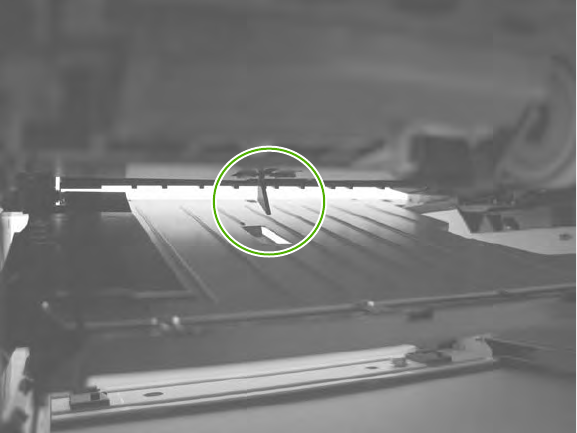

Figure 3-5 Test the duplex media-feed sensor
4. Check the control-panel display for sensor response.
5. If there is no response, replace the high-voltage power supply (duplex model).
