K Tray 1 paper sensor
Tray 1 (multipurpose tray) media-presence sensor (PS205)
1. Push the sensor lever toward the right side of the product and hold it there for 3 seconds to activate
the sensor.

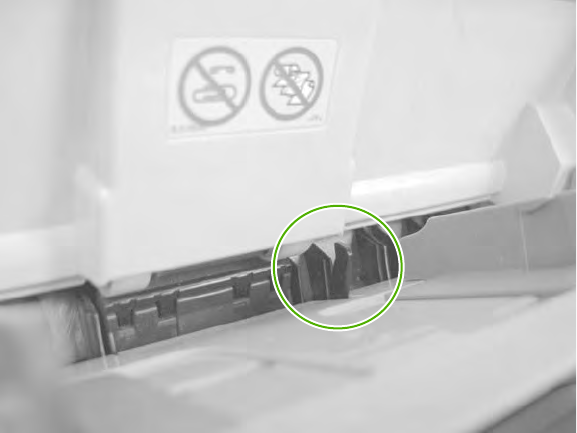

Figure 3-14 Test the Tray 1 (multipurpose tray) media-presence sensor
2. Check the control-panel display for sensor response.
3. If there is no response, replace the multipurpose sensor PCA.
150 Chapter 3 Solve problems ENWW
