Tray 2, Tray 3, or Tray 4 pickup roller
CAUTION: Do not touch the surface of the roller. Skin oils deposited on the roller might cause print-
quality problems.
NOTE: If you did not remove the Tray 2, Tray 3, or Tray 4 cassette before servicing the product, remove
it now.
1. Carefully place the product front-side up, so that you can see into the opening where the cassette
would be installed.
NOTE: Debris can scratch or damage the back of the product. Before you place the product front-
side up, remove any debris from the work surface. If possible, set the product on a clean, dry cloth
to prevent scratching and damage.
2. Release the roller bushing, rotate the busing up, and then slide the bushing off of the roller shaft.

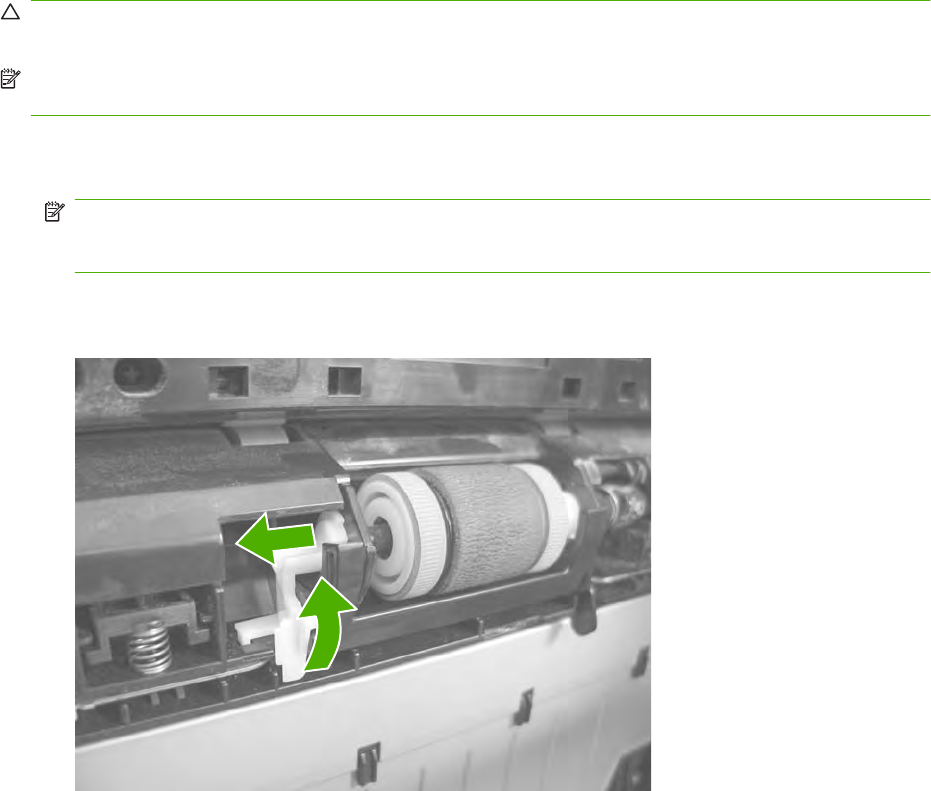

Figure 2-64 Remove the Tray 2, Tray 3, or Tray 4 pickup roller (1 of 3)
