D Paper width sensor 1
Test the media width sensor (PS225)
1. Open the cartridge door, and then remove the print cartridge.
2. Raise and then lower the registration flap to activate the sensor.

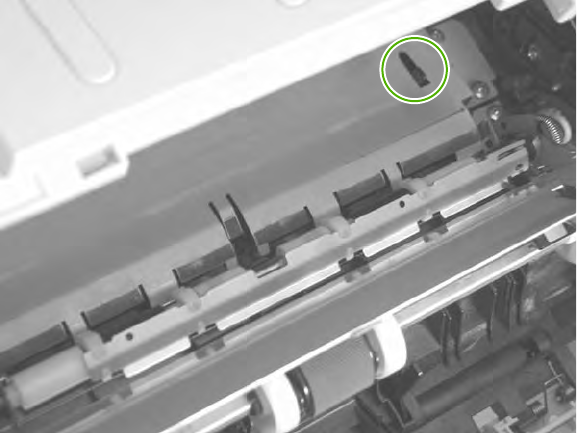

Figure 3-6 Test the media width sensor
3. Check the control-panel display for a sensor response.
4. If there is no response, replace the media width sensor PCA.
ENWW Tools for troubleshooting 143
