Registration roller
Wipe with a clean lint-free cloth
Transfer guide
Wipe with a soft, dry flannel cloth
Media-feed guide
Wipe with a clean lint-free cloth
Fuser-inlet guide
Wipe with a water dampened flannel cloth

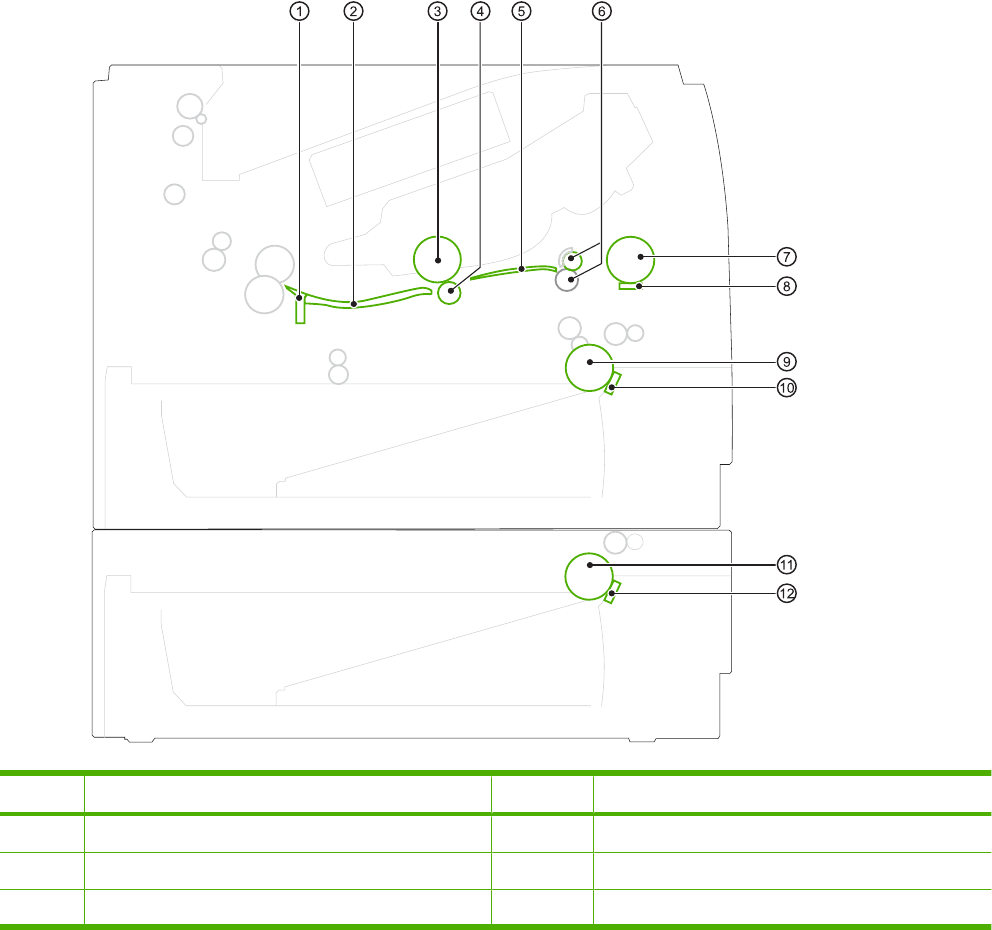

Figure 3-34 Product cleaning diagram
Table 3-10 Product cleaning diagram
Item Description Item Description
1 Fuser-inlet guide 7 Tray 1 (multipurpose tray) pickup roller
2 Media-feed guide 8 Tray 1 (multipurpose tray) separation pad
3 Photosensitive drum (in the print cartridge) 9 Cassette (Tray 2) pickup roller
ENWW Clean the product 255
