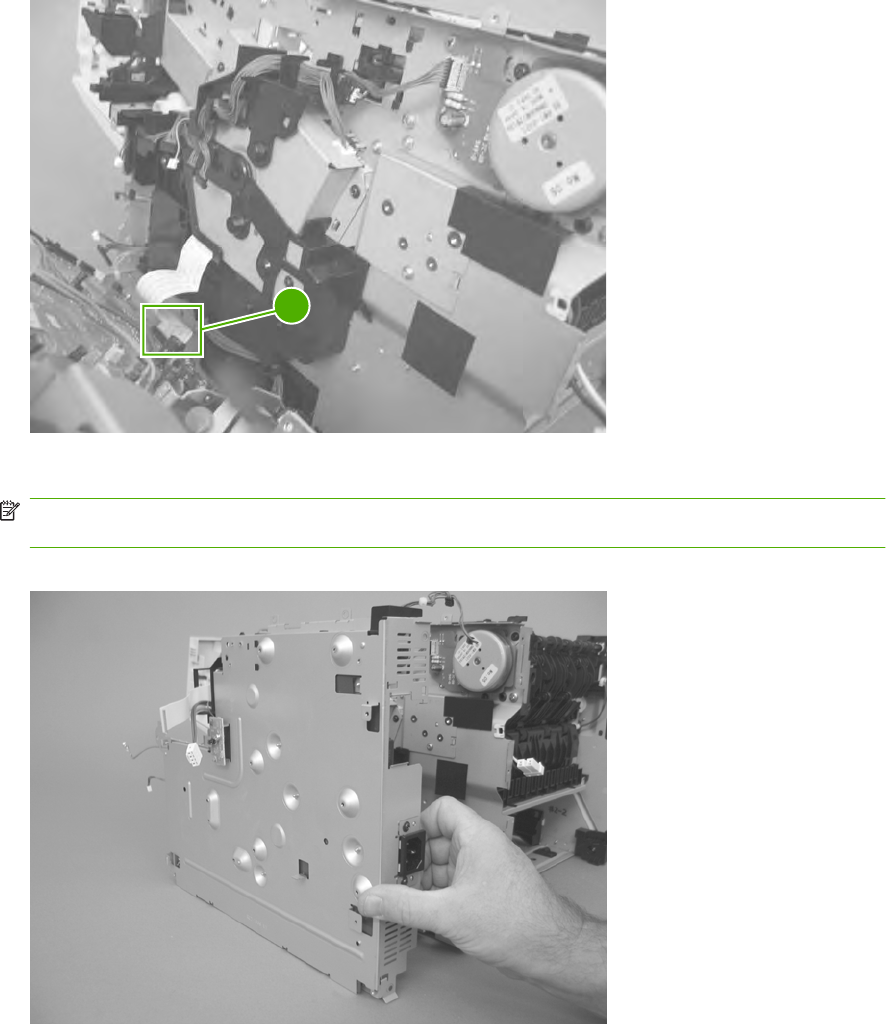

9. Disconnect one FFC (callout 1).
Figure 2-105 Remove the ECU (8 of 9)
1
10. Remove the ECU.
NOTE: The ECU and the ECU pan together are a single field-replaceable unit (FRU). You do not
have to separate the ECU and the ECU pan.
Figure 2-106 Remove the ECU (9 of 9)
114 Chapter 2 Removal and replacement ENWW
