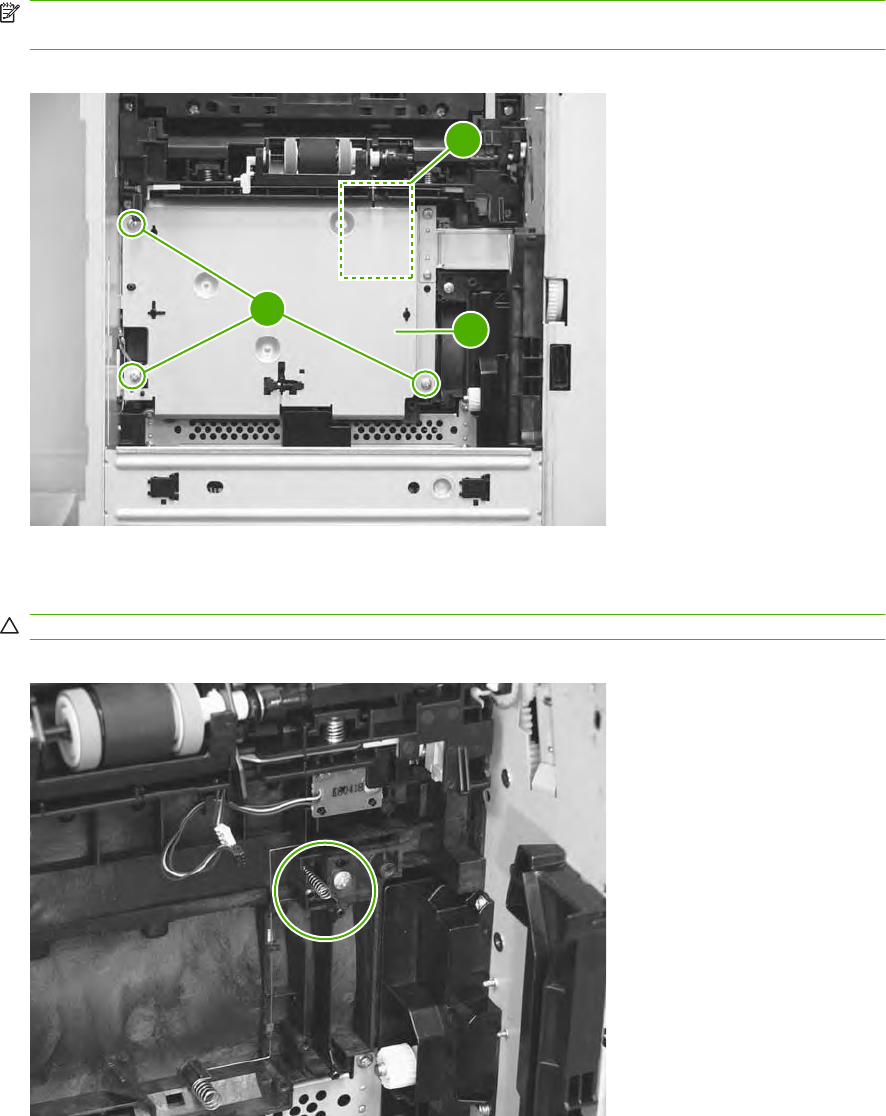

11. Remove three screws (callout 1), and then remove the high-voltage power supply (callout 2).
NOTE: Disconnect two connectors and one FFC (callout 3) on the HPVS as you separate the it
from the product.
Figure 2-125 Remove the high-voltage power supply (10 of 11)
2
1
3
12. After the high-voltage power supply is removed, make sure that the spring on the chassis is in
place.
CAUTION: This spring is not captive and can easily be lost.
Figure 2-126 Remove the high-voltage power supply (11 of 11)
126 Chapter 2 Removal and replacement ENWW
